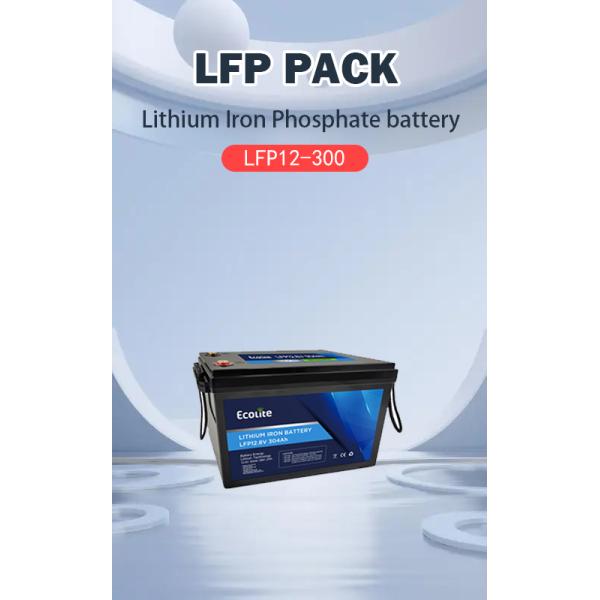

LFP12-300 12.8V 304Ah Lithium Iron Phosphate LiFePO4 Battery

Product Categories

HEFEI ECOLITE ENERGY CO., LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LFP12300 128V 304Ah Lithium Iron Phosphate LiFePO4 Battery
Brand: Ecolite/OEM/ODM
Price: 1 USD

Brand Name : Ecolite/OEM/ODM

Place of Origin : China

MOQ : 5000

Price : Inquiry

Payment Terms : L/C, T/T

Supply Ability : 5000 Units per month

Delivery Time : 1-2 months

Packaging Details : Carton Pallet Container

Nominal Voltage : 12.8V

Rated Capacity : 304Ah

Energy : 3891.2Wh

Resistance : ≤30mΩ

Efficiency : ≥0.98

Cycle Life : >3000cycles @1C,80% DOD

Self Discharge : <5% per Month

Max. Modules in Series/Parallel : 4S/1P

Communication : Bluetooth

Cell Type Chemistry : LiFePO4 Cell

Contact Now

LFP12-300 12.8V 304Ah Lithium lron Phosphate (LiFePO4)

Specifications:

Electrical Parameters		Mechanical Parameters
Nominal Voltage	12.8V	Dimension(WxDxH)	345x190x245mm
Rated Capacity	304Ah	Dimension(WxDxH)	13.58x7.48x9.65
Energy	3891.2Wh	Weight	26kg
Resistance	≤30mΩ	Terminal Type	M8
Efficiency	≥0.98	Battery Housing	ABS
Cycle Life	>3000cycles @1C,80% DOD	Housing Protection	IP67
Self Discharge	<5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	4S/1P	Communication	Bluetooth

Discharge Parameters		Charge Parameters
Continuous Discharge Current	250A	Charge Method	CC-CV
Pulse Discharge Current	400A(<10S)	Charge Voltage	14.2-14.6V
Recommended Volt. Disconnect	10V	Recommended Float Voltage	13.3~13.4V@100%
BMS Discharge Cut-off Voltage	10V	Recommended Charge Current	150A
Reconnect Voltage	10.8V	Maximum Charge Current	250A
Short Circuit Protection	300-800uS	BMS Charge Cut-off Valtage	14.8V

LFP12-300 12.8V 304Ah Lithium Iron Phosphate LiFePO4 Battery
